Time controlled switch (low-voltage apparatus)
With the increasing of energy consumption, people's demand for electric energy utilization is increasing day by day. At the same time, the cost of the use of electric energy has gradually increased, and has become a hot spot of concern for enterprises and families. To this end, many manufacturers began to introduce electrical equipment energy-saving auxiliary equipment - time control switch, which has high efficiency, energy saving, environmental protection, easy to operate and other characteristics are welcomed by more and more people. The market demand is also growing, and in order to meet the market demand for time-controlled switch products, Hitenx has launched a mature overall solution for time-controlled switch products. The solution is completed by a single MCU LCD display and relay control...

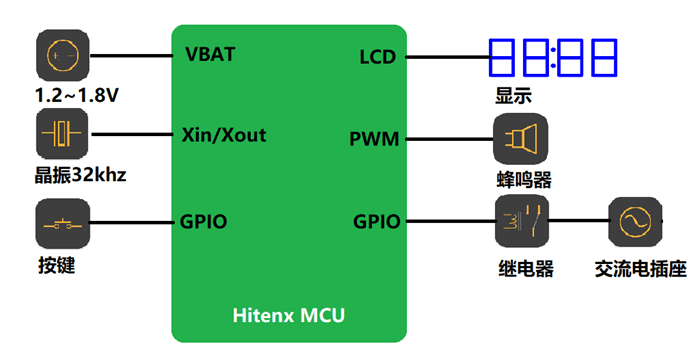

Scheme Topology
Selection Table
- Product Name(W) Function Description Application
- TM57P8640 RISC reduced instruction main control chip, built-in 2K * 14bits OTP, 176-byte SRAM, IAP type EPROM, 12 * 4 LCD Dot, RFC channel * 4, PWM * 1 Rope jumper, Thermohygrometer，Time control switch
Scheme Information
- File Name Version Describe Updated Date Download
